| Kit Part No : 790029135 (Rk-AB787-W27A) | |||
|---|---|---|---|
| Sr No. | Part No. | Description | Qty |
| 1 | 029607000 (AB787-743) | Plastic wing Valve | 1 |
| 2 | 029703000 (AB787-144) | O Ring | 1 |
| 3 | 029724000 (AB787-158) | Cup Washer | 1 |
| 4 | 029710500 (AB787-99) | O Ring | 1 |
| Sr No. | Item Description | SAB WABCO Ref No | D&M Ref | QTY/KIT |
|---|---|---|---|---|
| 1 | Kit for inlet check Valve | 790029135 | RK -AB787-W27A | 2 |
| 2 | Kit for Pre Coalescer | 790029165 | RK -AB787 – W27B | 1 |
| 3 | Kit for Drain Valve | 790029175 | RK -AB787 – W28 | 1 |
| 4 | Kit for outlet check valve | 790029145 | RK -AB787 – W29 | 2 |
| 5 | Kit for Purge Valve | 790029185 | (D&M Ref. RK-AB787-W36) | 2 |
| 6 | Kit for Solenoid Valve | 790029155 | RK -AB787 – W37 | 2 |
| 7 | Kit for regenerating orifice | 790029111 | RK -AB787 – W39 | 1 |
| 8 | Kit for Desiccant compactor | 790029205 | RK -AB787 – W41 | 2 |
| 9 | Kit for Desiccant canister | 790029195 | (D&M Ref. RK-AB787-W44) | 2 |
| 10 | Kit for Humidity Indicator | 790029105 | RK -AB787 – 187 | 2 |
| 11 | Flange purge valve O Rings | 029719000 | AB787 – 121 | 8 |
| 12 | Dryer Body and spacer O Rings | 029715000 | AB787 – 125 | 4 |
| 13 | O Ring for Inlet manifold body. | 029718000 | AB787 – 173 | 1 |
| 14 | O Ring for Outlet manifold. | 029713000 | AB787 – 188 | 2 |
| 15 | O Ring for Outlet manifold. | 029713000 | AB787 – 188 | 2 |
| 16 | Tetra Seal for drain valve | 029720000 | AB787 – 224 | 1 |
| 17 | Gasket for electrical box | 029712000 | AB787-191 | 1 |
| 18 | Tetra Seal for drain Valve | 02972000 | AB787-224 | 1 |
| Dryer Model No. | Kit Parts No. | A | B | Piping Assy |
|---|---|---|---|---|
| 975-122 | 790029115 (D&M Ref RK-AB787-T17) | 790029185 (D&M Ref RK-AB787-W36) | 790029195 (D&M Ref RK-AB787-W44) | 029150000 (D&M Ref RK-AB787-W30) |
| 975-122A | 790029115 (D&M Ref RK-AB787-T17A) | 790029185 (D&M Ref RK AB787-W36) | 790029195 (D&M Ref RK-AB787-W44) | 029150000 (D&M Ref RK-AB787-W30) |
| Sr No | Description | Part No | Qty/Kit | Ref Part No. |
|---|---|---|---|---|
| A | Kit For Purge Valve TS23-AD-W1 Ref 790029185 Qty 02/Set |
|||
| 1 | Cup Washer | W1-1 | 1 | 29724000 |
| 2 | Elastic Stop Nut 1/4 | W1-2 | 1 | 99300300 |
| 3 | O-Ring 17.12 X 2.62 | W1-3 | 1 | 029701500A |
| 4 | O-Ring 53.64 X 2.62 | W1-4 | 1 | 029708000A |
| 5 | Spring | W1-5 | 1 | 29806000 |
| 6 | Seat | W1-6 | 1 | 29611000 |
| B | Kit for Outlet Check Valve TS23-AD11-W2 Ref 790029145 Qty 02/Set |
|||
| 1 | Wing Valve | W2-1 | 1 | 296806000 |
| 2 | Spring | W2-2 | 1 | 29806500 |
| C | Kit for Inlet Check Valve TS23-AD11-W3 Ref 790029135 Qty 02/ Set |
|||
| 1 | Wing Valve | W3-1 | 1 | 29607000 |
| 2 | O-Ring 12.7 X 2.62 | W3-2 | 1 | 29703000 |
| 3 | Cup Washer | W3-3 | 1 | 29724000 |
| 4 | O-Ring 42.52 X 2.62 | W4-4 | 1 | 29710500 |
| D | Kit For Solenoid Valve TS23-Ad11-W4 Ref 790029155 Qty 02/set |
|||
| 1 | Plunger Assembly | W4-1 | 1 | 02905000A |
| 2 | Spring | W4-2 | 1 | 2983500 |
| 3 | O-Ring 28.24 X 2.62 | W4-3 | 1 | 29722000 |
| 4 | O-Ring 29.82 X 2.62 | W4-4 | 1 | 29723000 |
| 5 | O-Ring 21.95 X 1.78 | W4-5 | 2 | 29721000 |
| 6 | Gasket | W4-6 | 1 | 29904000 |
| Sr No. | Description | Part No. | Qty/Kit | Fer Part |
|---|---|---|---|---|
E |
Kit For Pre-Coalescer TS23-AD11-W5 Ref. 790029165 Qty 01/Set |
|||
| 1 | O-Ring 101.19 X 3.53 | W5-1 | 2 | 02971800A |
| 2 | Elastic Stop Nut 3/8 | W5-2 | 1 | 99300500 |
| 3 | Coalescer Element | W5-3 | 1 | 29204000 |
F |
Kit For Regenerating orifice TS23-AD11-W6 Ref. 790029111 Qty 01/Set |
|||
| 1 | O-RIng 6.02 X 2.62 | W6-1 | 1 | 0297060006 |
| 2 | O-Ring 13.1 X 2.62 | W6-2 | 1 | 029703500A |
| 3 | O-Ring 17.12 X 2.62 | W6-3 | 1 | 29707000A |
G |
Kit For Drain Valve TS23-AD11-W7 Ref. 790029175 Qty 01/Set |
|||
| 1 | Cup Seal | W7-1 | 1 | 29725000 |
| 2 | O-Ring 34.6 X 1.78 | W7-2 | 1 | 029709500A |
| 3 | O-Ring 17.12 X 2.62 | W7-3 | 1 | 029701500A |
| 4 | Valve Seat | W7-4 | 1 | 29601000 |
| 5 | Spring | W7-5 | 1 | 29805500 |
H |
Kit for Desiccant Compact TS23_AD11-W8 Ref. 790029205 Qty 02/Set |
|||
| 1 | O-Ring 15.54 X 2.62 | W8-1 | 1 | 029706500A |
| 2 | O-Ring 53.7 X 1.78 | W8-2 | 1 | 029709000A |
| 3 | O-Ring 45.69 X 2.62 | W8-3 | 1 | 029705500A |

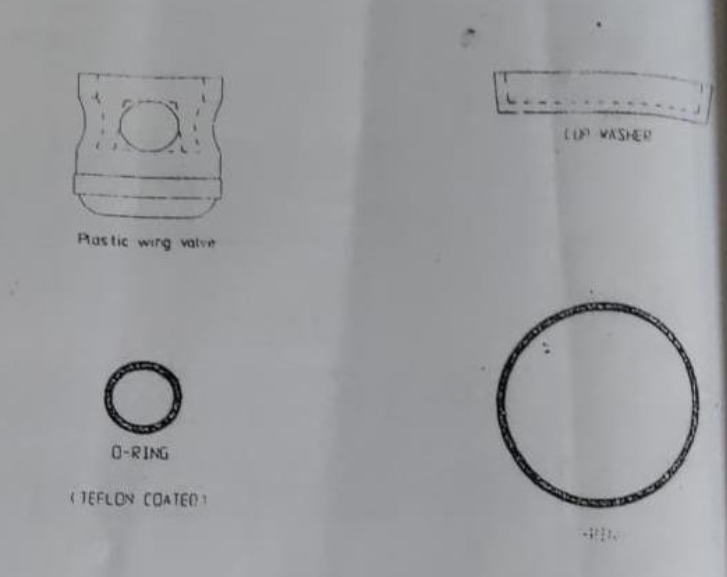

| Kit Part No : 790029135 (Rk-AB787-W27A) | |||
|---|---|---|---|
| Sr No. | Part No. | Description | Qty |
| 1 | 029607000 (AB787-743) | Plastic wing Valve | 1 |
| 2 | 029703000 (AB787-144) | O Ring | 1 |
| 3 | 029724000 (AB787-158) | Cup Washer | 1 |
| 4 | 029710500 (AB787-99) | O Ring | 1 |

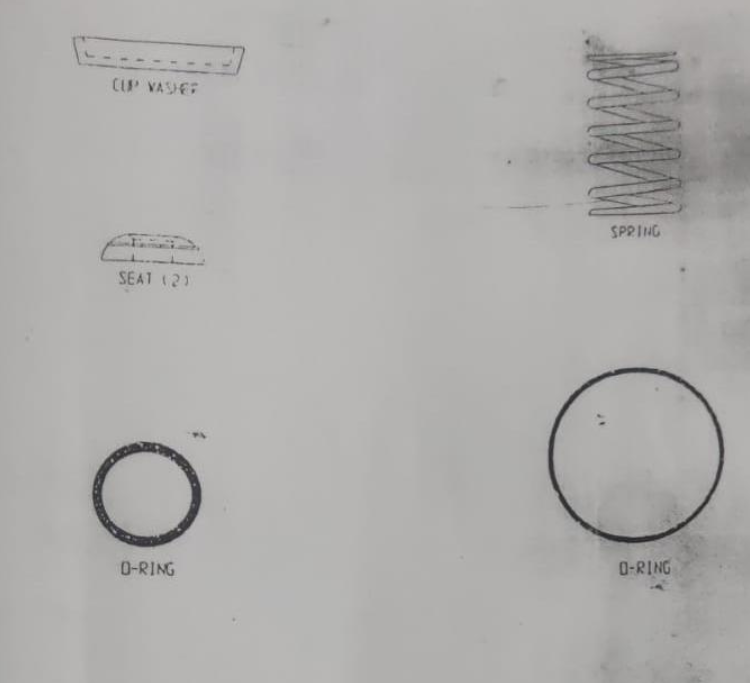

| Kit Part No : 790029175 (Rk-AB787-W28) | |||
|---|---|---|---|
| Sr No. | Part No. | Description | Qty |
| 1 | 029601000 (AB787-177) | Seat | 2 |
| 2 | 029701500 (AB787-144) | O Ring | 1 |
| 3 | 029725000 (AB787-180) | Cup seal | 1 |
| 4 | 029702500 (AB787-97) | O Ring | 1 |
| 5 | 029805500 (AB787-248) | Spring | 1 |

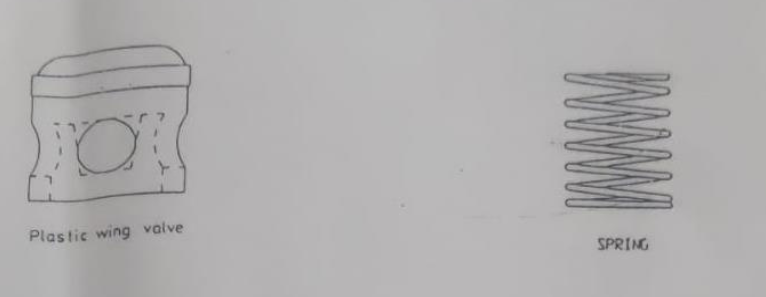

| Kit Part No : 790029145 (RK-AB787-W29) | |||
|---|---|---|---|
| Sr No. | Part No. | Description | Qty |
| 1 | 029607000 (AB787-243) | Plastic wing Valve | 1 |
| 2 | 029806500 (AB787-195) | Spring | 1 |

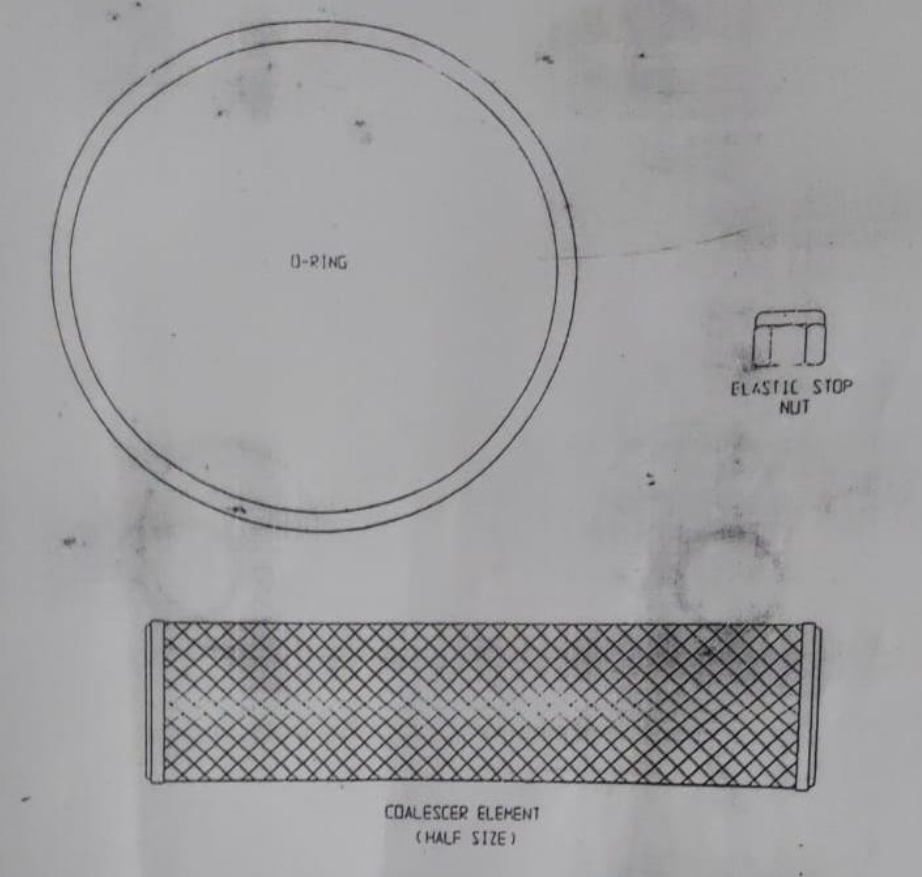

| Kit Part No : 790029165 (RK-AB787-W27B) | |||
|---|---|---|---|
| Sr No. | Part No. | Description | Qty |
| 1 | 029178000 (AB787-179) | O-Ring | 1 |
| 2 | 029204000 (AB787-170) | Coalescer element | 1 |
| 3 | 099300500 (AB787-172) | Elastic stop nut (3/8-16) | 1 |

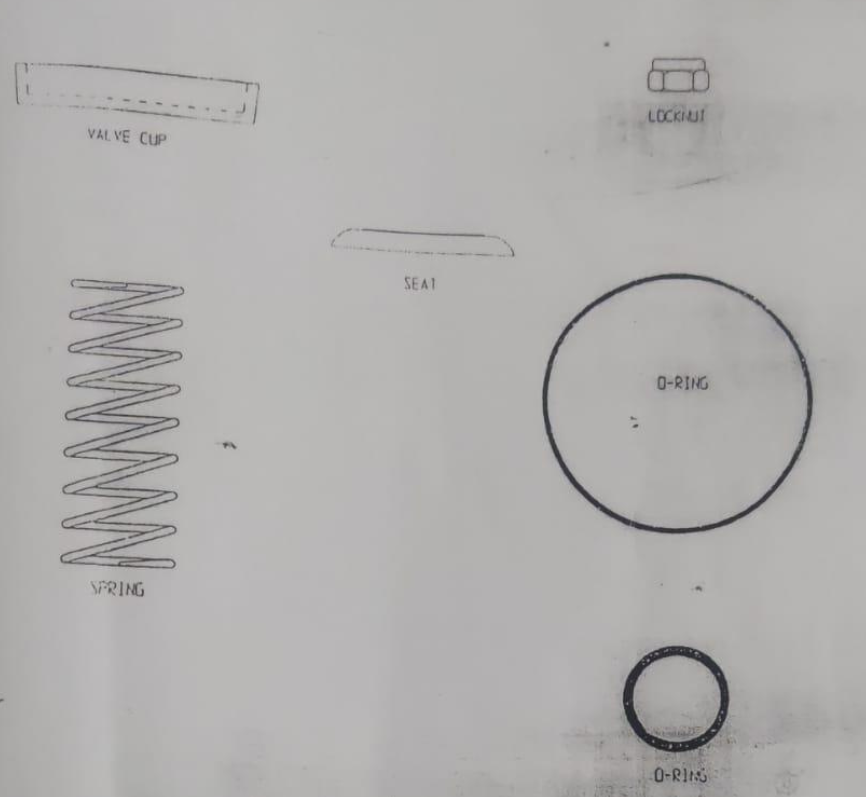

| Kit Part No: 790029185 (RK-AB787-W36) | |||
|---|---|---|---|
| Sr No. | Part No. | Description | Qty |
| 1 | 029724000 (AB787-142) | Valve Cup | 1 |
| 2 | 099300300 (AB787-143) | Lock Nut | 1 |
| 3 | 029701500 (AB787-144) | O-Ring | 1 |
| 4 | 029708000 (AB787-145) | O-Ring | 1 |
| 5 | 029806000 (AB787-146) | Spring | 1 |
| 6 | 029611000 (AB787-152) | Seat | 1 |

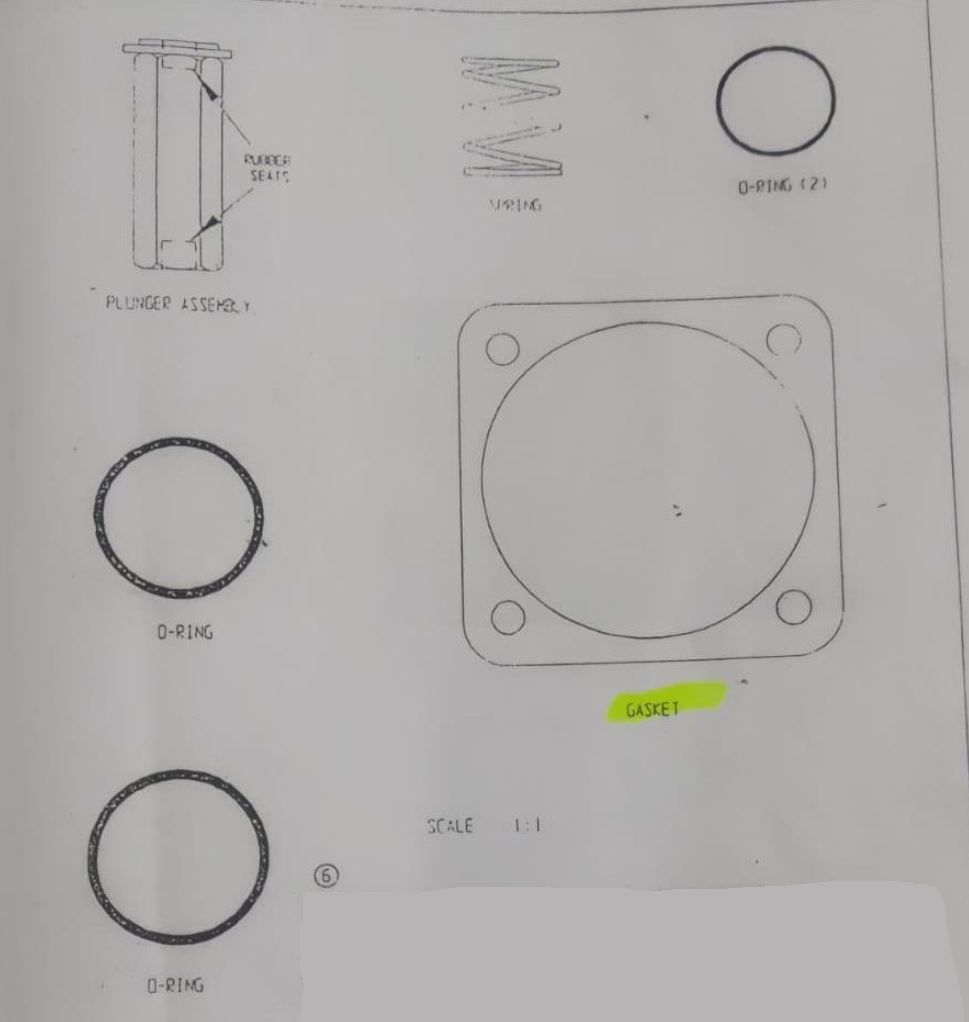

| Kit Part No : 790029155 (RK-AB787-W37) | |||
|---|---|---|---|
| Sr No. | Part No. | Description | Qty |
| 1 | 029205000 (AB787-201) | Plunger assy | 1 |
| 2 | 029835000 (AB787-202) | Spring | 1 |
| 3 | 029722000 (AB787-198) | O-Ring | 1 |
| 4 | 029723000 (AB787-200) | O-Ring | 1 |
| 5 | 029721000 (AB787-205) | O-Ring | 2 |
| 6 | 029904000 (AB787-194) | Gasket | 1 |
| Kit Parts No : 790029111 (RK-AB787-W39) | |||
|---|---|---|---|
| Sr No | Parts No | Description | Qty |
| 1 | 029706000 (AB787-111) | O-Ring | 1 |
| 2 | 029707000 (AB787-116) | O-Ring | 1 |
| 1 | 029703500 (AB787-117) | O-Ring | 1 |

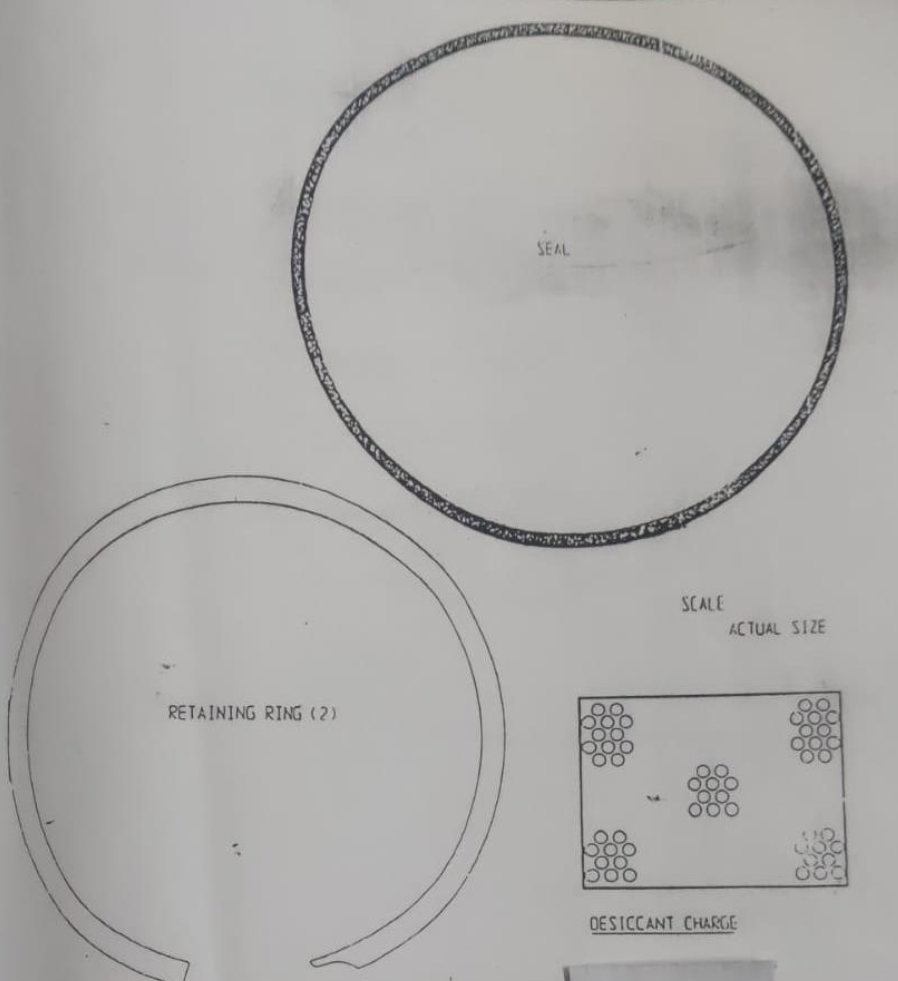

| Kit Part No 790029245 (RK-AB787-W44A) | |||
|---|---|---|---|
| Sr No | Part No | Description | Qty |
| 1 | 029814000 (AB787-128) | Retainer Ring | 2 |
| 2 | 029902000 (AB787-130) | Desccant Charge | 2.4 kgs |
| 3 | 029714000 (AB787-119) | O-Ring | 1 |

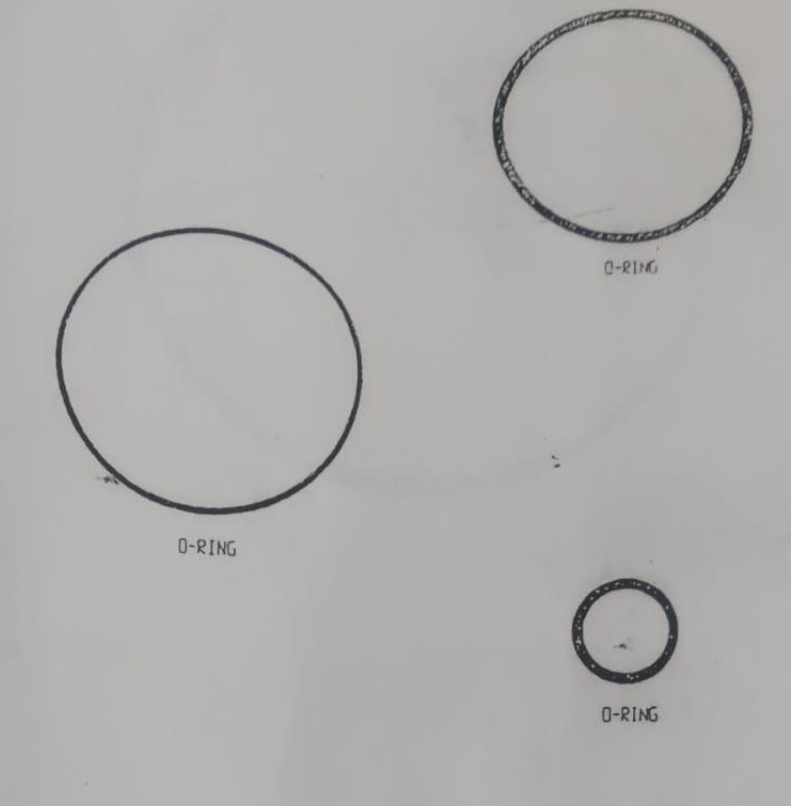

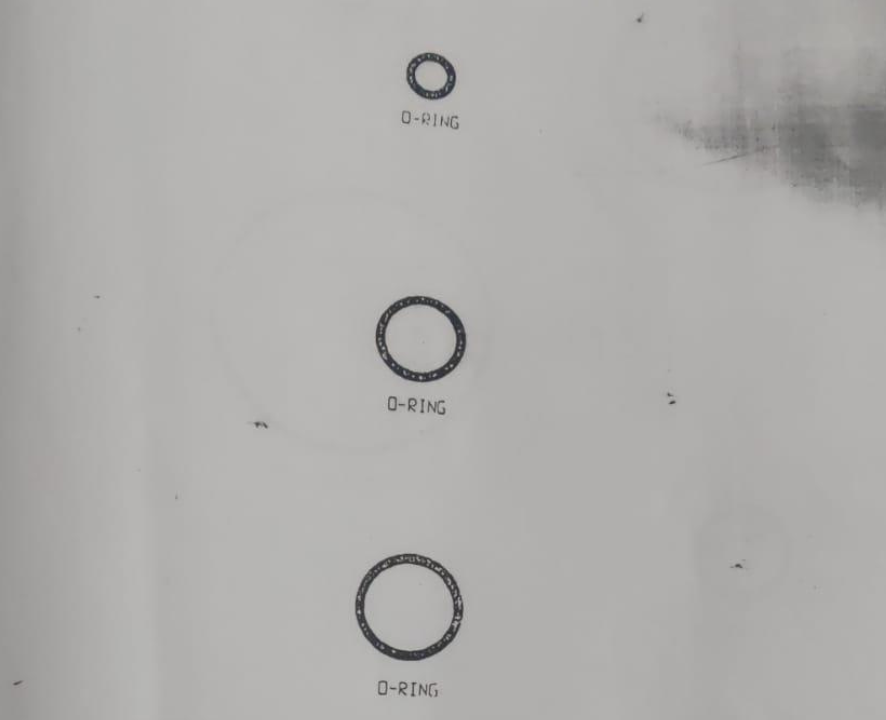

| Kit Part No 790029205 (RK-AB787-W41) | |||
|---|---|---|---|
| Sr No | Part No | Description | Qty |
| 1 | 029706500 (AB787-98) | O-Ring | 1 |
| 2 | 029709000 (AB787-231) | O-Ring | 1 |
| 3 | 029705500 (AB787-229) | O-Ring | 1 |
